Ⅰ、Introduction:
1.The anti-static hair brush is made of carbon and synthetic plastic,
2.which is hard and tough, durable, easy to use and flexible in operation.
Ⅱ、Use scope:
apply to the cleaning of PCB board, and the dust removal in assembly workshop of SMD and the surface of the electronic parts.
Ⅲ、Specification:
Model |
Small |
Medium |
Large |

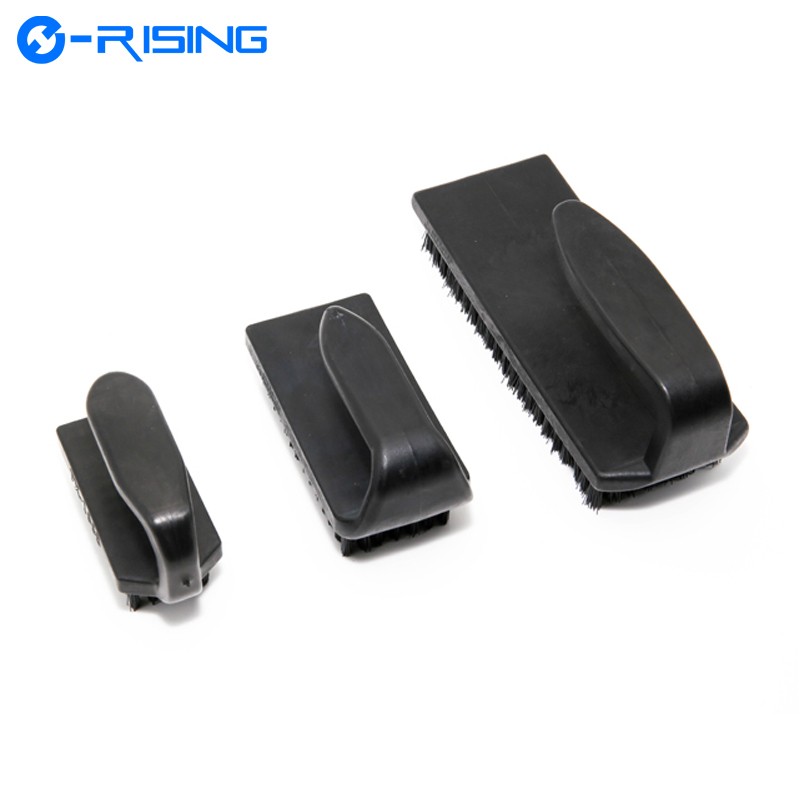

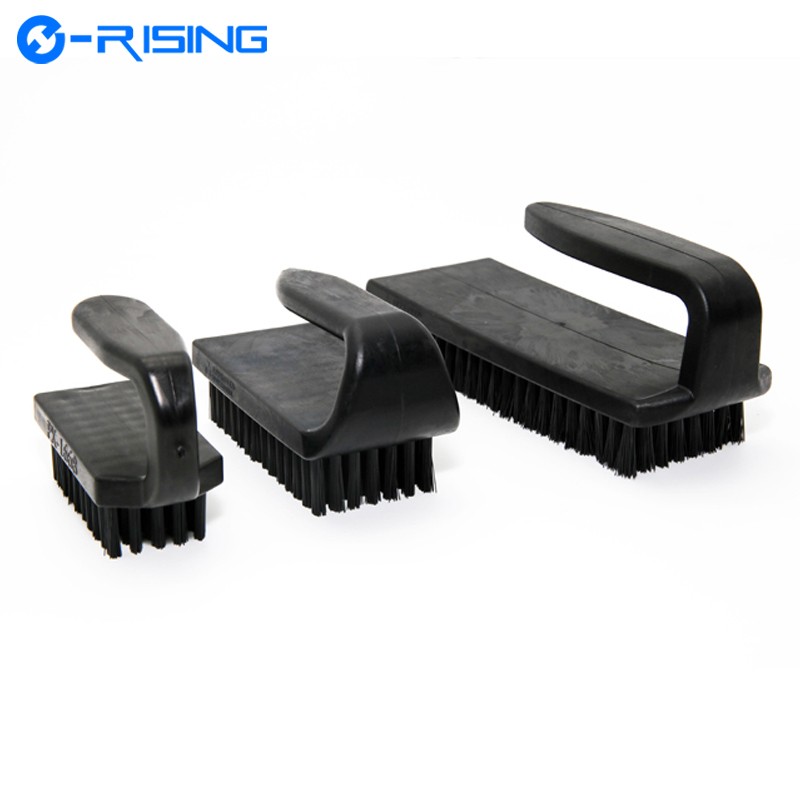

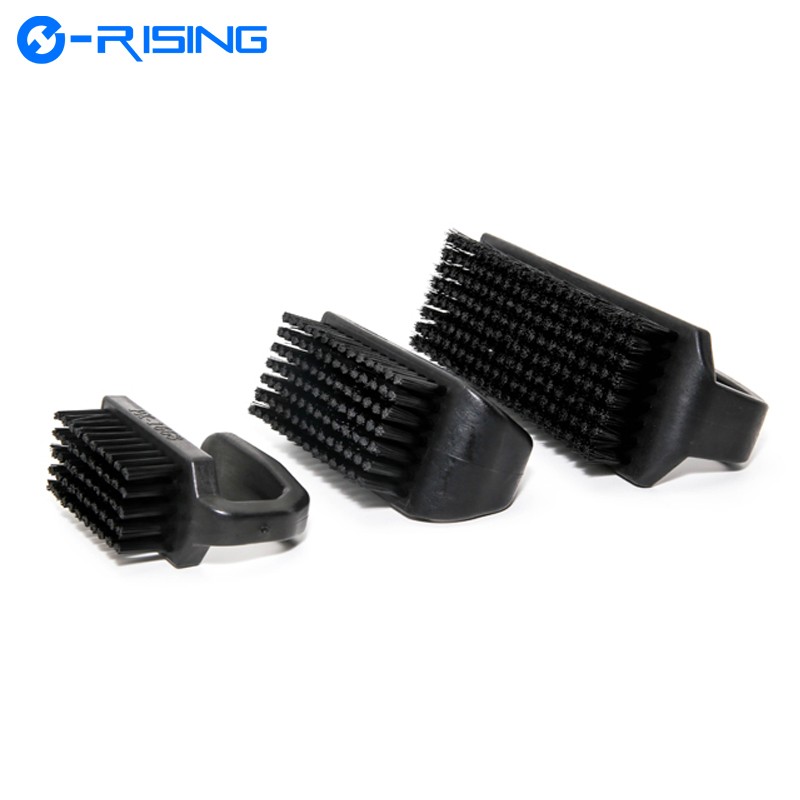

Anti-static U-type brush |
Handle Material: Carbon, Fiber Synthetic Plastic |
Handle Material: Carbon, Fiber Synthetic Plastic |
Handle Material: Carbon, Fiber Synthetic Plastic |
Brush material: conductive PA material |
Brush material: conductive PA material |
Brush material: conductive PA material |
|
Colour: Black |
Colour: Black |
Colour: Black |
|
Brush head width:40mm |
Brush head width:55mm |
Brush head width:170mm |
|
Handle length:80mm |
Handle length:80mm |
Handle length:80mm |
|
Hair length:21mm |
Hair length:21mm |
Hair length:21mm |
|
Tufts: 5 rows and 50 bundles |
Tufts:7 rows and 98 bundles |
Tufts:8 rows and 160 bundles |
|
Ω resistance:106-109Ω |
Ω resistance:106-109Ω |
Ω resistance:106-109Ω |
|
Fearture |
The handle is grooved and the grip feels more comfortable. |
